COIL PROCESSING EQUIPMENT
|
|
|
Un-Coiler Cone Drum Type
|
|
|
| Description: |
| |
| Construction: |
Fabricated with plates & sections , and all Components are accurately machined & assembled . |
| Coil centering: |
By
hydraulic cylinder |
| Size: |
508 mm
to 762 mm |
| Drive: |
Through ac motor & chain / sprocket |
| Capacity: |
Up to 30
ton |
|
| Usage: |
In Slitting Line, Cut-to-Length, Roll Forming Line, Galvanizing Line, Pickling Line etc |
|
|
|
|
|
|
|
|
|
|
|
Un-Coiler - Hydraulic Collapse & Expand Stub Type
|
|
|
| Description: |
| |
| Construction: |
Mostly fabricated with plates & sections , segments are of graded cast steel accurately matched with wedges , main shaft is of alloy steel and all Components are accurately machined & assembled .
|
| Coil centering: |
By hydraulic cylinder |
| Expand / collapse: |
By rotary hydraulic cylinder |
| Size: |
508 mm to 762 mm |
| Capacity: |
Up to 30 ton |
| Drive: |
Through
AC / DC motor through in-house made suitably rated gear reducer. |
|
| Usage: |
In Slitting Line, Cut-to-Length, Roll Forming Line, Galvanizing Line, Pickling Line etc |
|
|
|
|
|
|
|
|
|
|
|
Re-Coiler - Hydraulic Collapse & Expand Mandrel
|
|
|
| Description: |
| |
| Construction: |
Mostly fabricated with plates & sections , segments are of graded cast steel accurately matched with wedges, with gripping facility for under / over winding , main shaft is of alloy steel and all Components are accurately machined & assembled .
With pusher plate For ejecting wound coil & Over Arm Separator for Slitting Line.
|
| Coil centering: |
By hydraulic cylinder |
| Expand /
collapse: |
By rotary hydraulic cylinder |
| Size: |
508 mm to 762 mm |
| Capacity: |
Up to 30 ton |
| Drive: |
Through
AC / DC motor via in-house made gear box up to 250 KW. |
|
| Usage: |
In Slitting Line, Galvanizing Line, Pickling Line etc |
|
|
|
|
|
|
|
|
|
|
|
Straightener - Hydraulic Operated Screw & Tilting Bed System
|
|
|
| Description: |
| |
| Construction: |
Fabricated with plate, equipment is fitted with screw down gear box driven by hydro motor, the bottom bed of the Straightener is of tilting type, tilting is done hydraulically by hydro motor.
Work Rolls & Backup Rolls are mounted on Bed face,
Work Rolls are individually driven by Universal Joints.
Equipment is powered by suitably rated motor with Drive The Straightener capacity is to correct
2mm to 16mm Thick Coil X 2000mm Wide.
Motor is coupled by Helical Gear Box and out put of Gear Box is individually distributed by Pinion Stand coupled to Work Rolls of
straightener.
Equipment is fitted with limit switches & sensors.
|
|
| Usage: |
In Slitting Line, Cut-to-Length, Roll Forming Line, Pickling Line etc |
|
|
|
|
|
|
|
|
|
|
| Leveller - Hydraulic Operated
|
|
|
| Description: |
| |
| Construction: |
Fabricated Housing fitted with well equipped Chokes, Pressure is adjustable by Hydraulic cylinders with synchronizing
gears. All Rolls are driven by
Pinion Stand.
Equipment is powered by suitably rated Motor through Helical Gear
Box. This Leveller corrects the coil sheet of 2mm to 7 mm in thickness and 1800mm Wide.
|
|
| Usage: |
In Slitting Line, Cut-to-Length, Roll Forming Line, Galvanizing Line, Pickling Line etc |
|
|
|
|
|
|
|
|
|
|
|
Coil Car
|
|
|
| Description: |
| |
| Construction: |
Fabricated body with nylon
pad. Lifting & Traverse is done by Hydraulic Cylinder and traverse by Hydro Motor.
Car Lifting capacity is 30tUsed to lift coil from storage saddle and load it on Un-Coiler Mandrel or unload from Re-Coiler Mandrel
|
|
| Usage: |
In Slitting Line, Cut-to-Length, Roll Forming Line, Galvanizing Line, Pickling Line etc |
|
|
|
|
|
|
|
|
|
|
|

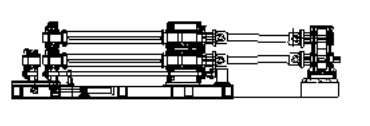

Slitter Head - Eccentric Cam Type
|
|
|
| Description: |
| |
| Construction: |
Mostly fabricated from plate and
sections Arbor are fitted in eccentric cam sleeves Outboard engage and disengage is done by hydraulic cylinder Arbors are hard chrome plated and fitted with Key.
Slitting Cutters are locked on it with Metallic Spacers and Rubber Stripper
Rings. Arbors are driven by Pinion Stand through Cross Couplings, Pinion stand is coupled to Gear Box which is driven by suitably rated Motor.
|
|
|
|
|
|
|
|
|
|
|
Other Items Like
|
|
|
| Description: |
| |
|
Zinc Tanks for Galvanizing
Line
Lead Tanks
S.S.Annealing Pot
Gear Boxes & Pinion Stands
Air Knifes for Galvanizing Line
Pinch Rolls Assembly
Hydraulic / Mechanical Shear
Hot Rolling Mill Spares.
Angle Straightening Machine
Special Designed Machine. |
|
|
|
|
|
|
|
|
|
|
